Quick start
To get you started quickly, let’s write some indicators, starting with simple examples and gradually moving on to more complex ones.
Minimal indicator
Here is a minimal indicator for TakeProfit, which simply plots the ‘close’ price of the current chart instrument as a solid line:
Let us take a closer look to what is happening in this example. First of all, the entry point of every indicator
is the Main
function (it must be named Main
to keep all things in a ‘standardized’ way).
The Main
function is a function that is called per every candle of a chart instrument from left to right and after
that it is continued to be called on every realtime update of the last (rightmost) candle. To sum up, it returns an
indicator value for every candle of the main instrument.
There is a self
parameter in the Main
function and it is an object of type
MainContext
. It represents the main instrument of the chart, for example it
gives access to OHLCV values of the instrument (e.g. self.close
). If you are
familiar with Python, then you probably know that self
is a reference to the instance of the class that is currently
being used. It has the exact same meaning in Indie, though there are no classes in the code (yet). The @indicator
decorator is a syntactic sugar that turns def Main
function into a class Main
. Read more about this in
How Indie’s syntactic sugar works section.
Context, another new term (represented by a self
parameter of Main
function) is a representation of a current instrument displayed on a candle chart, with all it’s prices (open, high, low, close,
volume, etc.), some state and any other possible attributes it may have. In our example we take a series of close prices self.close
and apply a square brackets operator to it, to get the last (most recent) value of that price:
self.close[0]
. Zero offset always corresponds to the last value (value on the last candle). Offset 1
corresponds to the value of the previous candle and so on.
Our Main
function is decorated with a required @indicator
decorator with a
required title
param (title
is the first param of this decorator, but you may write it in a kwarg form:
@indicator(title='Example 1')
). In general, decorators (things which names start with a @
character) provide
meta-information about indicators to TakeProfit’s runtime. Meta-information describes indicator in some way, we will
see a lot of this further.
Finally, please note, that we have to import
symbols like indicator
, because they are not a part of Indie’s
built-in symbols. For now, the list of things that are allowed to be imported in the indicator code is very limited.
But as the platform grows, the library will be expanded accordingly.

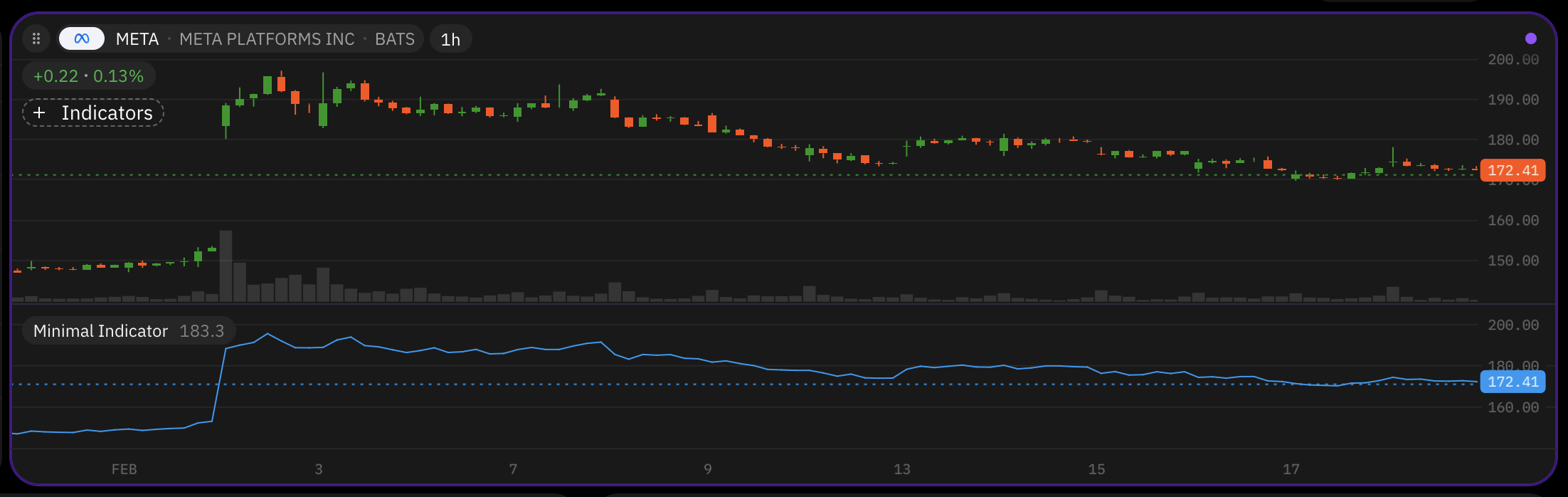

After you type (or better copy-paste) the above code into the Code Editor (which is a widget and it should be added to your workspace first as More Widgets -> Indicators Code Editor) click on the button Add to Chart. As you can see, the indicator was added on a separate pane, below the main pane with candle chart.

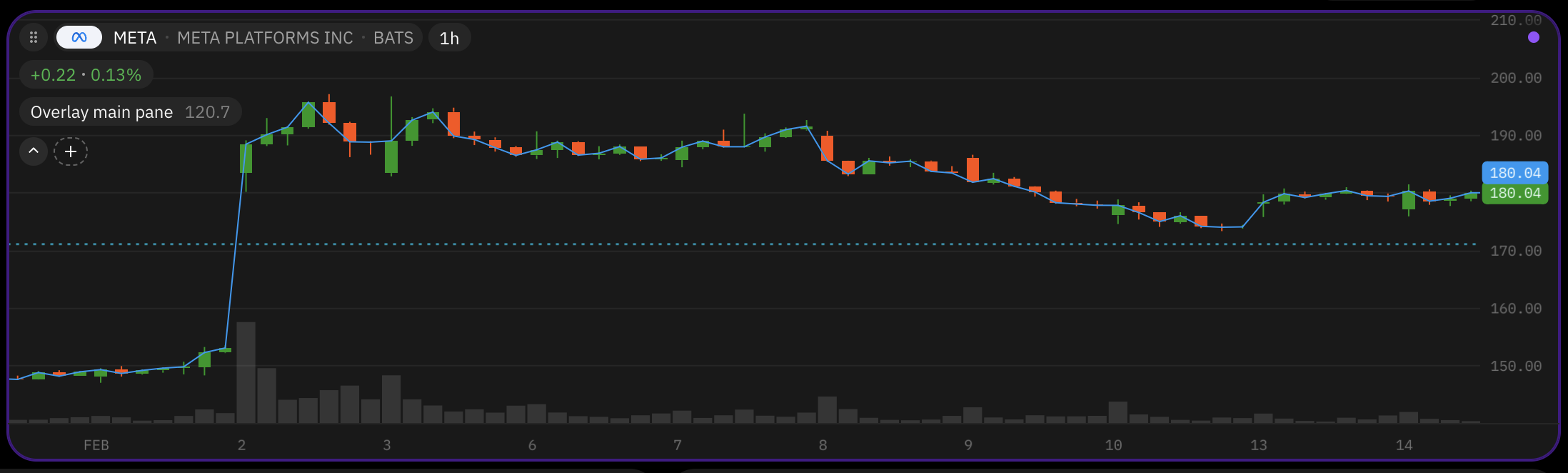

Overlay main pane
If we want to add our indicator as an overlay on candle chart, we may add overlay_main_pane=True
param to the
@indicator
decorator:

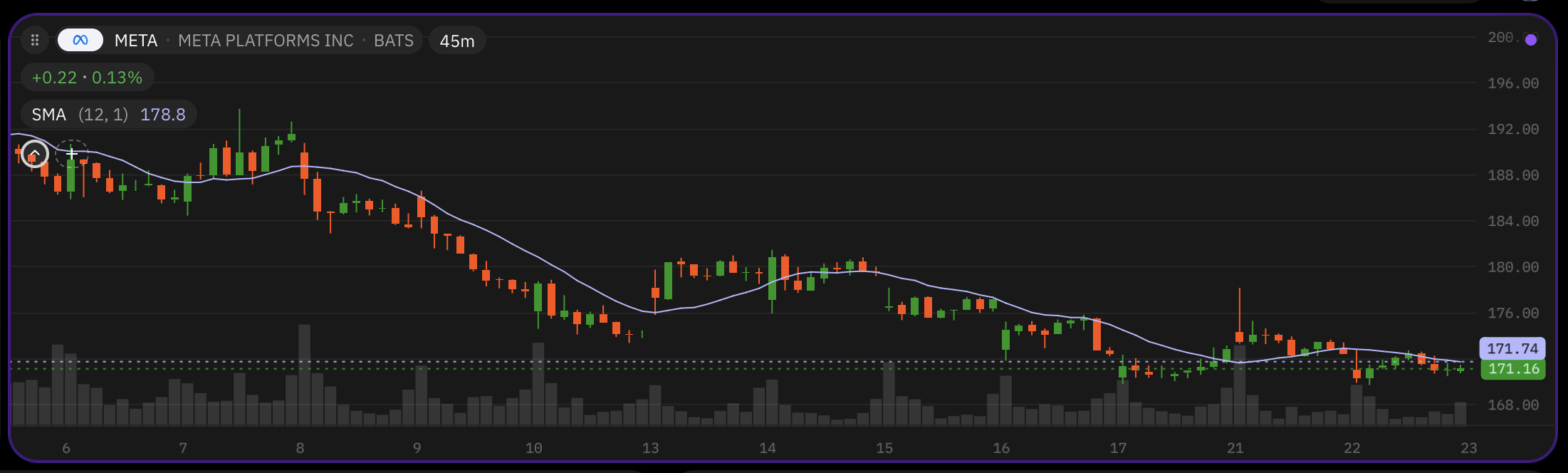

Apply the SMA algorithm
TakeProfit has a library of standard algorithms, such as Simple Moving Average (SMA), let us import and use it:
There are two essential parts that make it work: 1) import of the Sma
algorithm from package indie.algorithms
and 2) invocation of Sma.new
in the indicator’s code: Sma.new(self.close, 12)
. Algorithms that process series of prices
(like self.close
) usually return series of numeric values (variable s
). More about algorithms in this chapter.

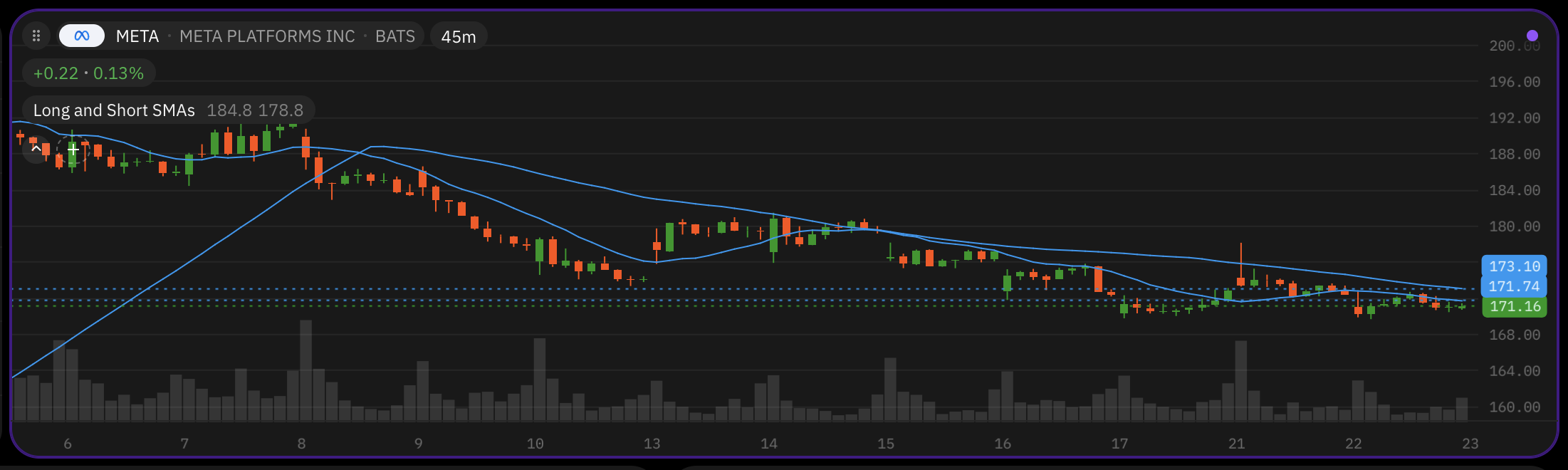

Let us make our indicator more interesting and calculate two SMAs with different lengths:
This indicator returns a tuple consisting of two values: l[0]
and s[0]
, that is why it plots two lines.
Plot with different colors
There are two different ways to colorize indicator’s plot lines. First one is to use one single color for the whole
plot. In such a way, colors are actually not involved in calculation over the candle prices, they are part of
indicator’s meta-information. We use @plot.line
decorator for such way of coloring:

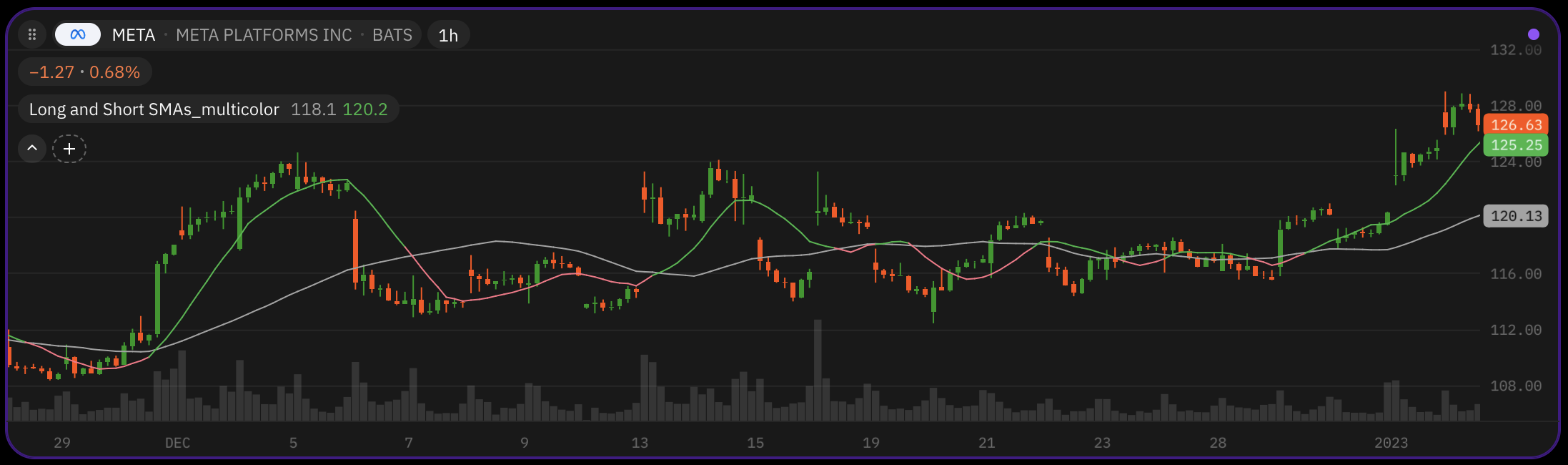

What if we would like to make a multicolored plot line? We may want to calculate the color depending on
the candle prices data. If so, we would return from Main
function not plain numbers, but plot.Line
objects:

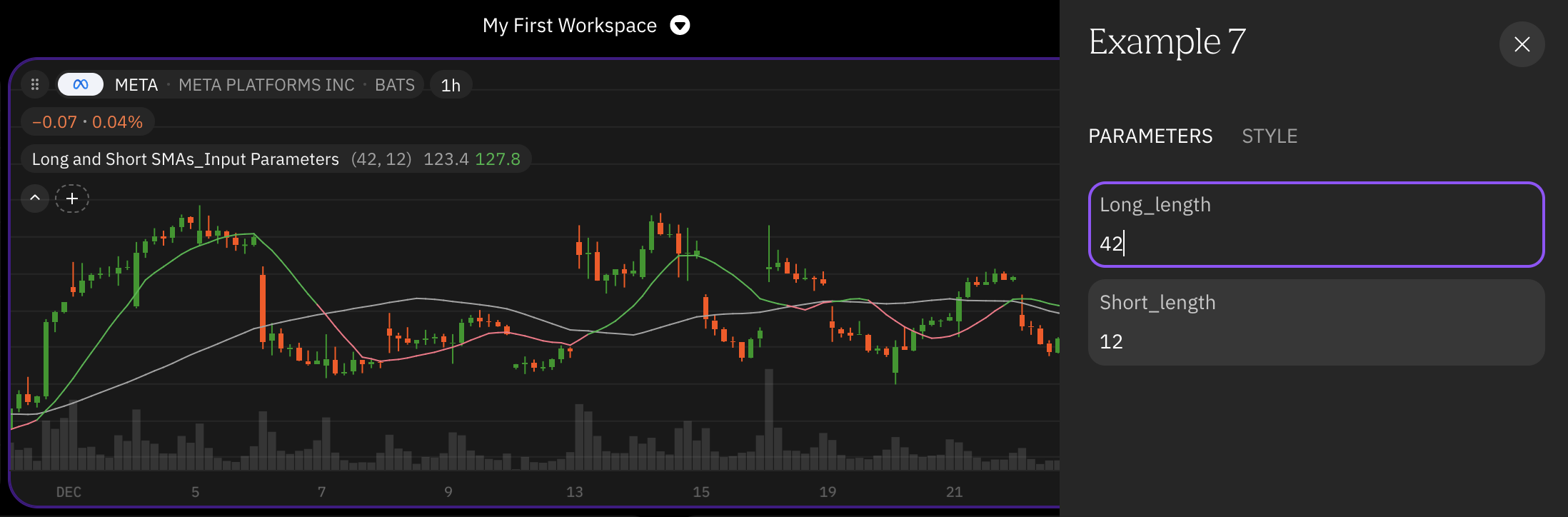

Input parameters
It would be better not to hardcode the lengths of our two SMAs (literal constants 42
and 12
) but instead use named
parameters. Named parameters are very convenient because they can be modified in the indicator’s Settings panel
without modifying the indicator’s source code. For this purpose there are a whole set of decorators, starting with
@param.
prefix, for example: @param.int
, @param.bool
, @param.string
and so on. Let us incorporate them in our
example indicator:
More info about input parameters in this chapter.
